Constantly focus on product quality and innovation

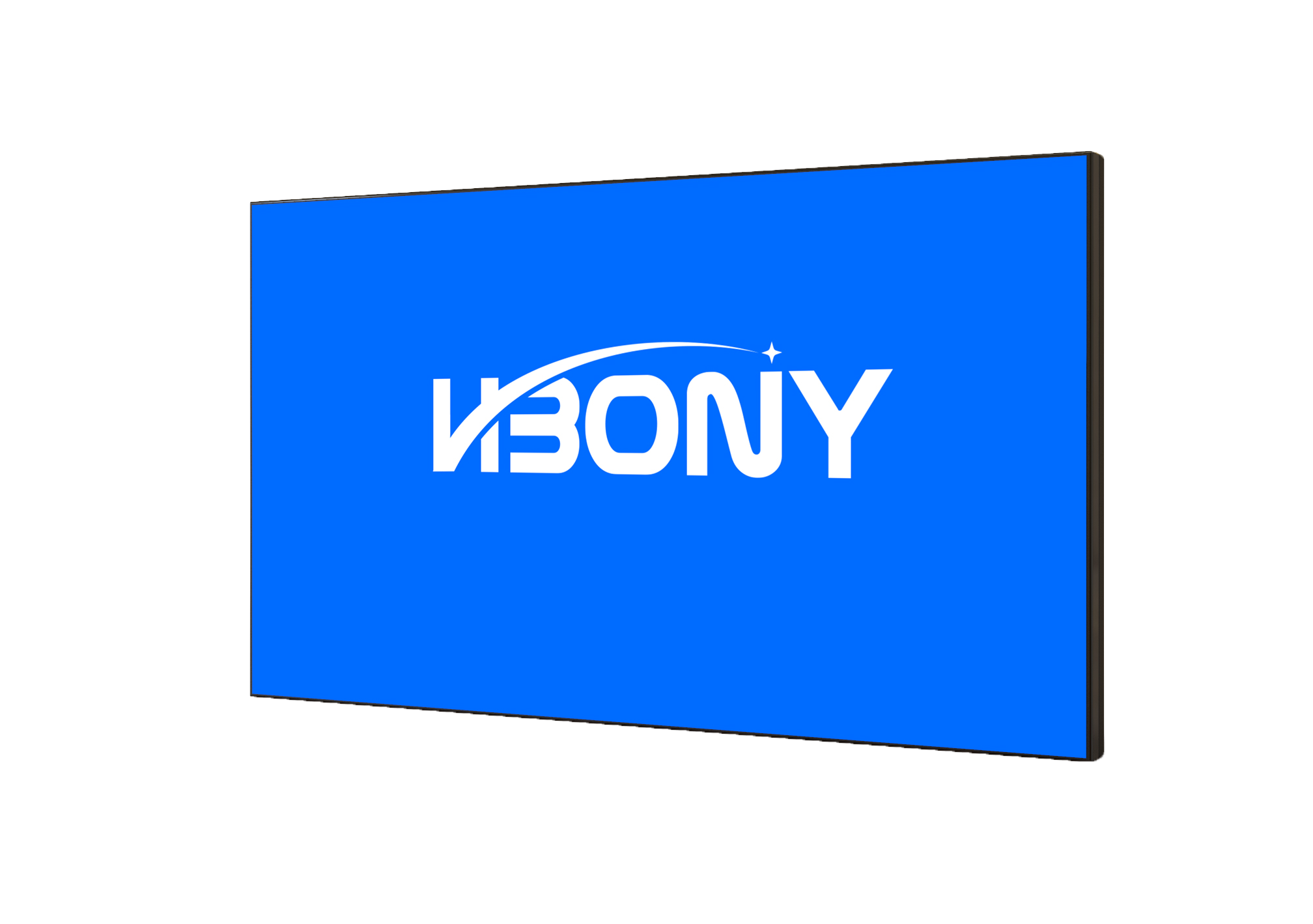

Using BOE original industrial-grade DID LCD screen. BOE LCD video wall has 46 inches, 49 inches, 55 inches, and 65 inches, including ten models. They are suitable for different fields and occasions, especially suitable for urban security projects.
Contact Us
+| Product size | 1021.98*576.57*116.7mm | Pixel pitch |
0.53025*0.53025mm |
| Net weight | 20kg/Unit | Bezel width | 0.88mm/1.7mm/3.5mm |
| Panel type | TFT-LCD | Screen brightness | 500（cd) /m2 or 700（cd)/m2 |
| Contrast ratio | 1200:1 | Aspect ratio | 16:9 |
| Resolution | 1920*1080 | Display color | 16.7M(8bit) |
| Viewing angel | 178oH/178oV | Response time | ＜6ms |
| Control signal input | RS232(RJ45-8) | Loop out signal | R232(RJ45-8) |
| Max power consumption | 180（W/m²) | Power supply | AC100-240V/50-60Hz |
| Working environment | 0~+40℃ | Working humidity | 10-90% |
| Service life | 600,000 hours | Warranty | 1-3 years |
Original A+ Grade Panel
high color fidelity, high brightness,
no light leakage, ultra-high contrast, fast response speed
Multi Split Screen
Screen Intelligent Splicing,
Single Screen Srbitrary Combination
Easy Adjustment
Provide One-Stop Service Solutions
Widely Applications
Widely used in conference,monitoring,exhibitions,
security,research institutions and military Organizations,etc.
